Home > Excavator Travel Device >

SK200-3 Excavator Kobelco Travel Device Assy 2410J11090F3 2410J11090F4

Product Categories

Guangzhou Tiangong Machinery Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

SK200-3 Excavator Kobelco Travel Device Assy 2410J11090F3 2410J11090F4

Name: SK2003 Excavator Kobelco Travel Device Assy 2410J11090F3 2410J11090F4
Brand: TGFQ
Price: 500.00 USD

Buy cheap SK200-3 Excavator Kobelco Travel Device Assy 2410J11090F3 2410J11090F4 product

Brand Name : TGFQ

Model Number : SK200-3 SK200-5

Place of Origin : Guangdong, China

MOQ : 1

Price : 500.00-4000.00USD

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 1000 pcs / month

Delivery Time : 1-3days

Packaging Details : NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type

Product Name : Excavator Travel Gearbox

Part Number : 2410J11090F3 / 2410J11090F4 / YN53D00001F1

Applicable Industries : Machinery Repair Shops, Energy & Mining

Means of Transpor : By Sea, By Air or By Express

Outer Packing : wooden case

Contact Now

SK200-3 Excavator Kobelco Travel Device Assy 2410J11090F3 2410J11090F4

Kobelco SK200-3 SK200-5 Excavator Final drive

Product Parameter:

Product name:	Travel Gearbox
Place of Origin:	China(Mainland)
Model:	SK200-3 SK200-5
Part Number:	410J11090F3 / 2410J11090F4 / YN53D00001F1
MOQ:	1 PCS
Payment term:	L/C, T/T, D/P, D/A
Delivery time:	Within 1-3 days after receiving the payment
Means of Transport:	By Sea, By Air or By Express

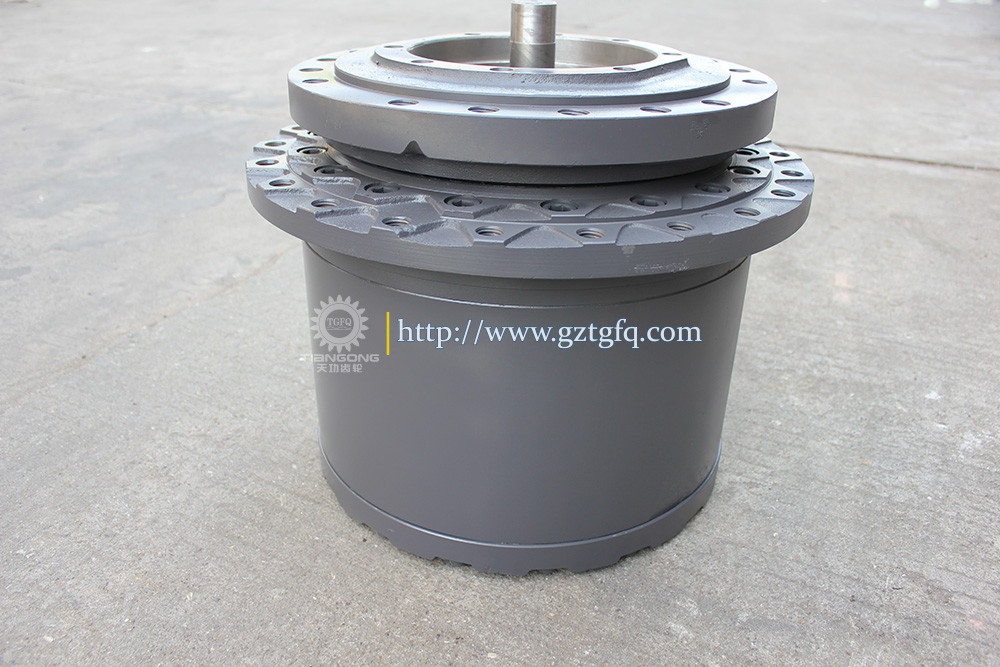

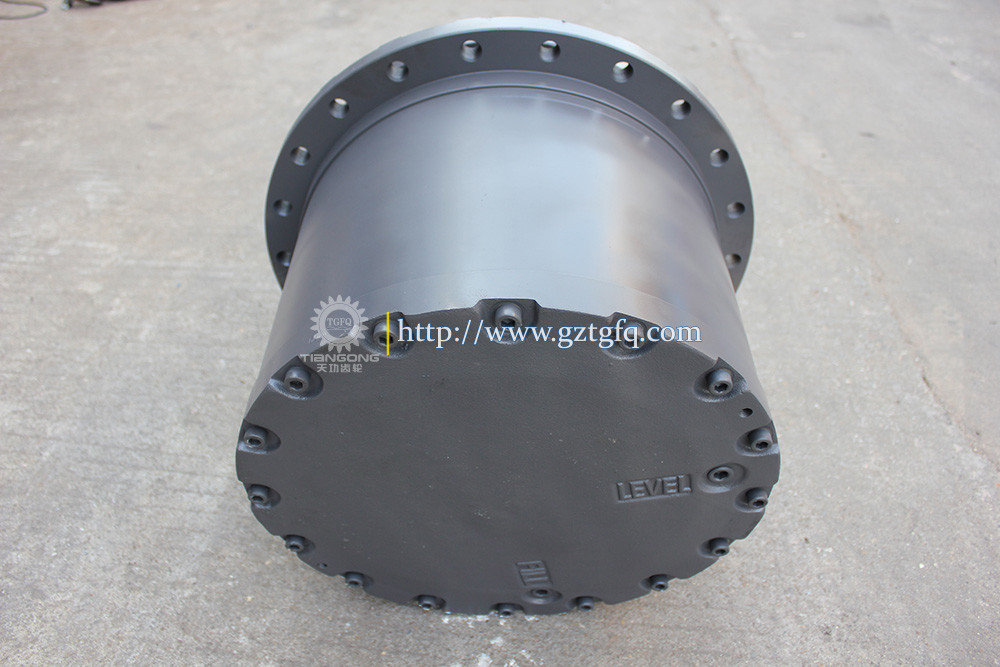

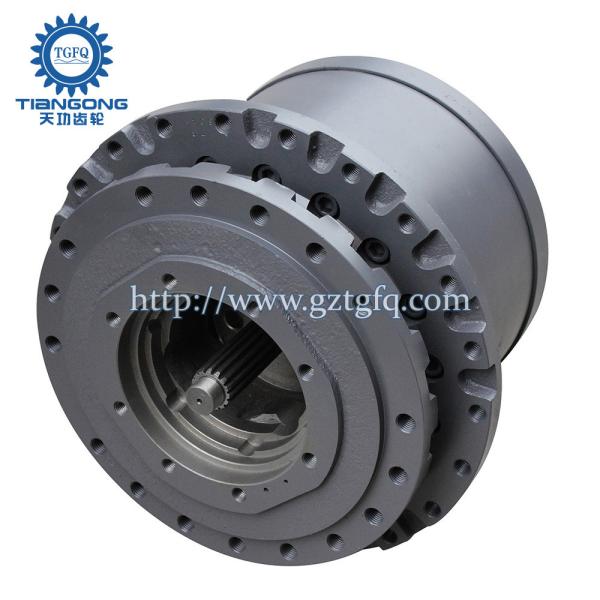

SK200-3 Travel Gearbox Photo:

SK200-3 Excavator Kobelco Travel Device Assy 2410J11090F3 2410J11090F4

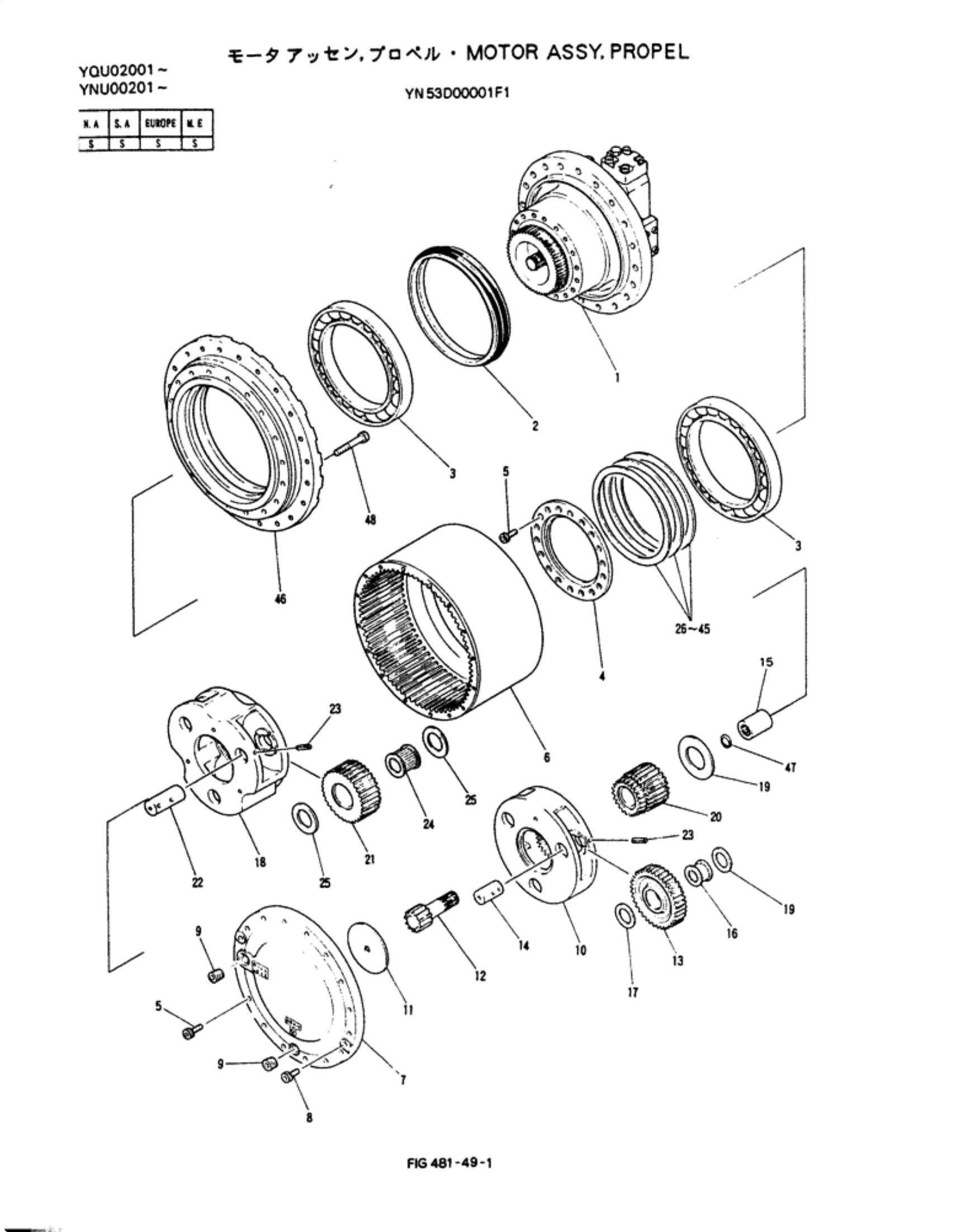

Drawing:

SK200-3 Excavator Kobelco Travel Device Assy 2410J11090F3 2410J11090F4

Parts on group (SK200) - MARK IV EXCAVATOR BTW YNU0201 - YNU0500 (1/97-12/97):

Pos.	Part No	Qty	Parts name	Comments
. .	YN53D00001F1	[1]	HYDRAULIC MOTOR	KOB Superseded by part number: YN53D00001F2
1	YN15V00003F1	[1]	HYDRAULIC MOTOR	KOB Superseded by part number: YN15V00003F2
2	ZD57F30040	[1]	SEAL	KOB Superseded by part number: ZD58F30040
3	2425R217	[2]	BEARING	KOB
4	2418N4714	[1]	RETAINER	KOB
5	ZS23C10025	[34]	SCREW,Hex Socket Head, M10 x 25mm	KOB M10x1.50x25mm Superseded by part number: ZS28C10025
6	2401N469	[1]	RING GEAR	KOB
7	2414N4376	[1]	COVER	KOB
8	ZS23C10014	[2]	BOLT,Hex Socket Head, M10 x 14mm	KOB M10x1.50x14mm Superseded by part number: ZS28C10014
9	ZE82T12000	[2]	PLUG	KOB 3/4" PT
10	2413J380	[1]	DIFF. SPIDER	KOB SPIDER
11	2418T19791	[1]	SPACER	KOB
12	YN32W01023P1	[1]	SUN GEAR	KOB
13	2401P1323	[3]	PINION	KOB
14	2410T363	[3]	ROLLER SHAFT	KOB
15	YN32W01025P1	[1]	COUPLING	KOB Superseded by part number: YN15V00003S010
16	2425Z531	[3]	NEEDLE BEARING	KOB
17	2418T20981	[6]	THRUST WASHER	KOB
18	2413J372	[1]	DIFF. SPIDER	KOB SPIDER
19	2418P20198D4	[1]	SPACER	KOB
20	YN32W01024P1	[1]	SUN GEAR	KOB
21	2401P1275	[3]	PINION	KOB PLANETARY
22	YN53D01001P1	[3]	SHAFT	KOB
23	ZP26D06032	[6]	ROLL PIN	KOB
24	2425Z529	[3]	NEEDLE BEARING	KOB BEARING, NEEDLE
25	2418T19790	[6]	THRUST WASHER	KOB
26	2420P1534D1	[1]	SHIM	KOB (1.1)
27	2420P1534D2	[1]	SHIM	KOB (1.2)
28	2420P1534D3	[1]	SHIM	KOB (1.3) Superseded by part number: 2420P1534D4
29	2420P1534D4	[1]	SHIM	KOB (1.4)
30	2420P1534D5	[1]	SHIM	KOB (1.5)
31	2420P1534D6	[1]	SHIM	KOB (1.6)
32	2420P1534D7	[1]	SHIM	KOB (1.7)
33	2420P1534D8	[1]	SHIM	KOB (1.8)
34	2420P1534D9	[1]	SHIM	KOB (1.9)
35	2420P1534D10	[1]	SHIM	KOB (2.0)
36	2420P1534D11	[1]	SHIM	KOB (2.1)
37	2420P1534D12	[1]	SHIM	KOB (2.2)
38	2420P1534D13	[1]	SHIM	KOB (2.3)
39	2420P1534D14	[1]	SHIM	KOB (2.4)
40	2420P1534D15	[1]	PIN	KOB SHIM (2.5)
41	2420P1534D16	[1]	SHIM	KOB (2.6)
42	2420P1534D17	[1]	SHIM	KOB (2.7)
43	2420P1534D18	[1]	SHIM	KOB (2.8)
44	2420P1534D19	[1]	SHIM	KOB (2.9)
45	2420P1534D20	[1]	SHIM	KOB (3.0)
46	2418N4716	[1]	HUB	KOB
47	ZR26X03200	[1]	SNAP RING	KOB Retaining -- ID 32 x OD 34.4 x Th 1.2mm
48	ZS23C16075	[18]	SCREW,Hex Socket Head, M16 x 75mm	KOB M16x2.0x75mm

SK200-3 Excavator Kobelco Travel Device Assy 2410J11090F3 2410J11090F4

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

SK200-3 Excavator Kobelco Travel Device Assy 2410J11090F3 2410J11090F4

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.

Q: How long is the warranty period?
A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.

Q: Can I order one of our samples for testing first?
A: Of course!

Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order

Q: Do you have a factory?
A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
