VOE 14528733 Excavator Travel Device EC210

VOE 14528733 Excavator Travel Device EC210

EC210 Excavator Travel Gearbox Assy Apply To Vol-vo TGFQ

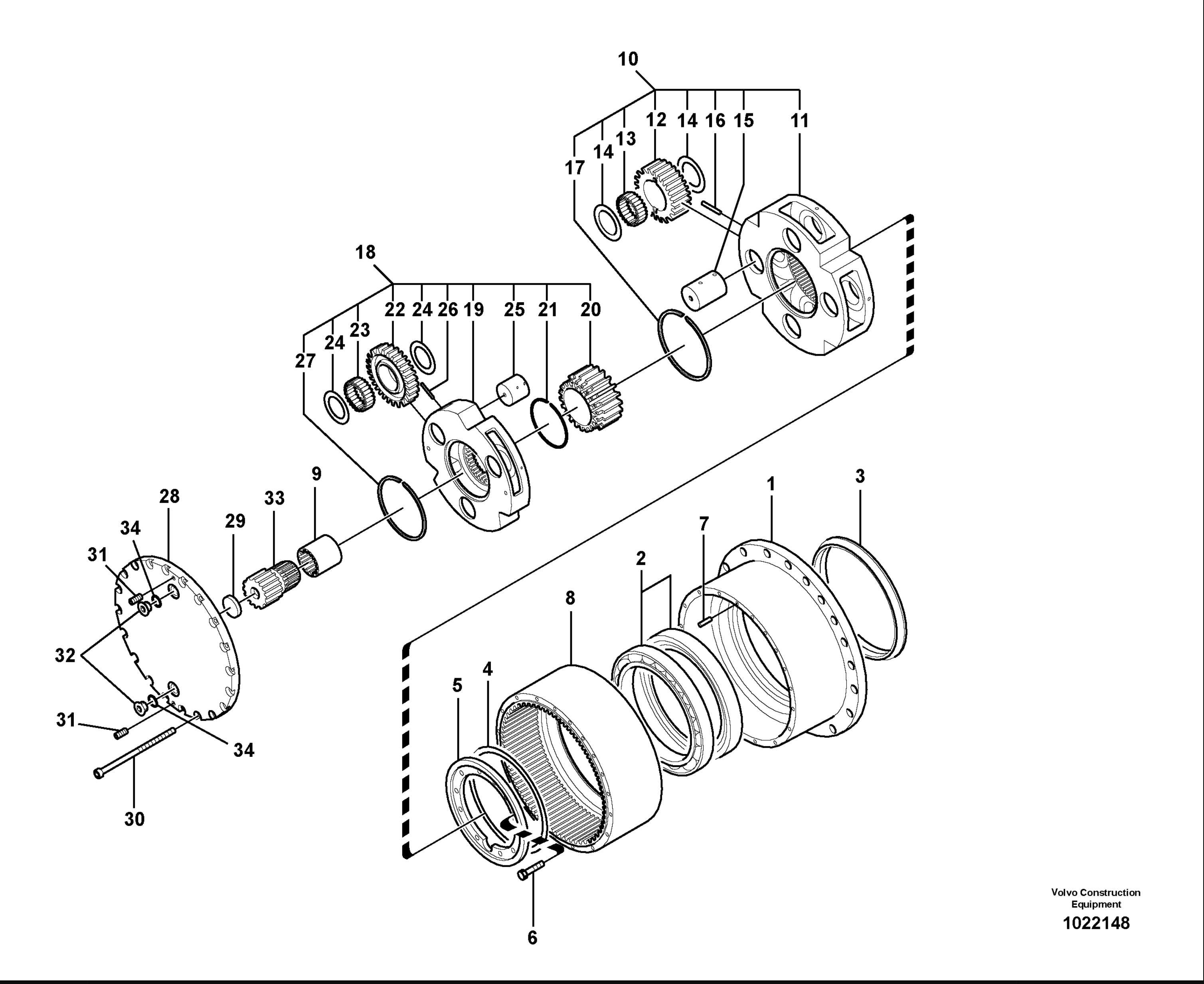

Parts on group Travel gearbox:
Pos.	Part No	Qty	Parts name	Comments
	VOE14528733	[1]	Travel gearbox	S/N -83936/-51379
	VOE14693056	[1]	Travel gearbox	S/N 83937-/51380-
1	VOE14522475	[1]	Housing	S/N -83936/-51379
	VOE14693058	[1]	Housing	S/N 83937-/51380-
2	SA7117-30110	[2]	Ball bearing
3	VOE14729840	[1]	Seal
4	SA7117-30140	[1]	Shim	0,1 Thick
	SA7117-30150	[1]	Shim	0,9 Thick
	SA7117-30160	[1]	Shim	1,0 Thick
	SA7117-30170	[1]	Shim	1,2 Thick
5	SA7117-30130	[1]	Retainer
6	VOE997446	[12]	Hexagon screw
7	SA9324-21212	[2]	Pin
8	SA7117-30190	[1]	Ring gear
9	SA7117-30180	[1]	Flexible coupling
10	VOE14528723	[1]	Planet carrier
11	SA7117-30210	[1]	Planet carrier
12	SA7117-30240	[4]	Planetary Gear
13	SA7117-30230	[8]	Needle bearing
14	SA7117-30220	[8]	Thrust washer
15	VOE14528724	[4]	Pin
16	SA9325-06012	[4]	Spring pin
17	SA7117-30260	[1]	Thrust ring
18	VOE14528727	[1]	Planet carrier
19	VOE14528728	[1]	Planet carrier
20	SA7117-30290	[1]	Sun gear
21	SA7117-30300	[1]	Ring
22	SA7117-30340	[3]	Planetary gear
23	SA7117-30320	[3]	Needle bearing
24	SA7117-30310	[6]	Thrust washer
25	SA7117-30360	[3]	Pin
26	VOE951955	[3]	Spring pin
27	SA7117-30260	[1]	Thrust ring
28	VOE14602566	[1]	Cover
29	SA7117-15230	[1]	Pad
30	SA7117-30370	[20]	Hexagon screw
31	SA9023-11004	[2]	Set screw
32	VOE14883848	[0002]	Plug
33	SA7117-30330	[1]	Sun gear
34	VOE983524	[0002]	O-ring
100	VOE14526220	[1]	Overhaul kit

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts

Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.

Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.

Q: can I order one of our samples for testing first?
A: Of course!

Q: how do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order

Q: do you have a factory?
A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
